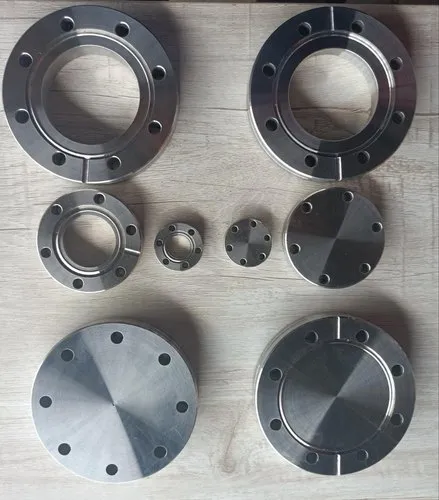

High Vacuum CF Flanges

Pipe Size	16CF to 350 CF
Ouside Diameter of Flange	OD 34CF TO OD425
Material	Stainless Steel
Country of Origin	Made in India

Component choices for vacuum flanges and fittings include access cap or port covers,adaptors ball socket or spherical joint adaptors, ceramic or metal adaptors,or isolaters, glas to metal adaptors, flexible or exapansion coupling, union cuopling, 4 way cross, way cross or cube, flange assembly, flange clamp.

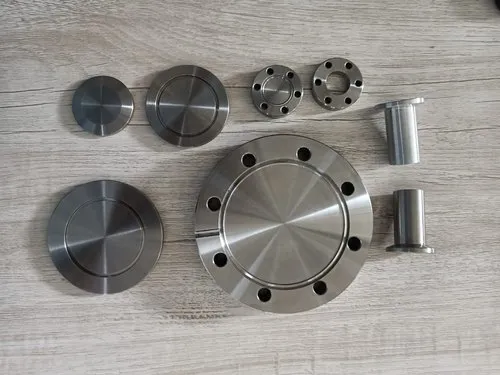

High Vacuum chamber Fittings

Material	SS 304,SS 316, ALUMINIUM
Usage/Application	HV & ULTRA HIGH VACUUM
Brand	SHREE GANESH ENGINEERING
Material Standard	SS 304 SS 316
Country of Origin	Made in India

SS 304 SS 316 ALUMINIUM Manufacturer of high & ultra vacuum Component and System Valves and Vacuum apllication.

High Vacuum I S O Flange

Size/Diameter	1 inch
Flange Types	Slip-On Flange
Usage/Application	VACUUM FITTINGS
Size	63 MM TO 400MM
Material	SS 304 SS304L SS 316
Finishing	CNC

SS 304 SS 304L SS 316 VACUUM FITTINGS

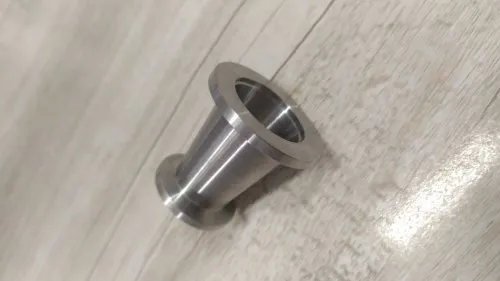

SS KF Reducer High vacuum Fitting

Material	SS
Connection	Female
Reducer Type	Concentric

Kf reducer 25to 16 kf A union is a threaded fitting which allows the pipe work to be separated and reconnected without any horizontal movement in the pipe. It can be a standalone pipe fitting connecting two pieces of pipe, or an integral part of another fitting (such as a ball valve) which allows it to be separated.

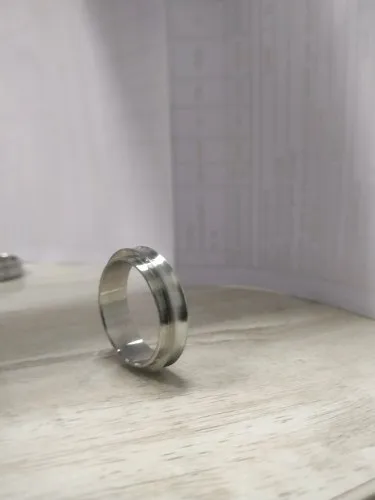

KF Centering Ring

Material	Stainless Steel
Size	10 KF to 50 KF

KF Center Ring Gold is one of the most common and desired metals used in rings of all varieties. The metal's popularity for men's or women's engagement and wedding rings is unsurpassed. 10kt, 14kt and 18kt are the most common karat values found.

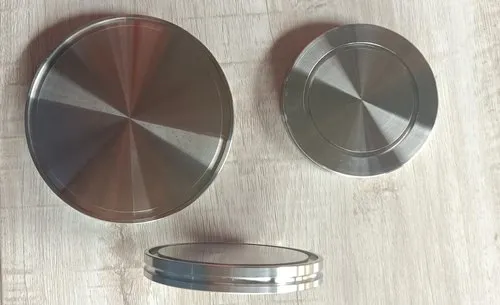

Vacuum chamber Fittings And Flanges

Material	SS
Fitting Type	Elbow
End Connection Type	Buttweld
Usage/Application	Vaccum
Brand	SHREE GANESH ENGINEERING
Country of Origin	Made in India

SS 304/316 CF,KF, ISO,Rotatable, KF Reducer, CF,KF Cross,CF Flange Half Nipple, KF hose Adaptor.
